- Frequency: GPS 1575.42MHz; LNA Gain: 28dB;
- Power Supply DC Voltage: 3V to 5V; Power Supply DC Current: 10mA Max;
- Feature: Magnetic Mounting, Adhesive Mount;
- Cable Length: 3m / 10 feet; Connector Type: MCX Male Plug Right Angle Connector;

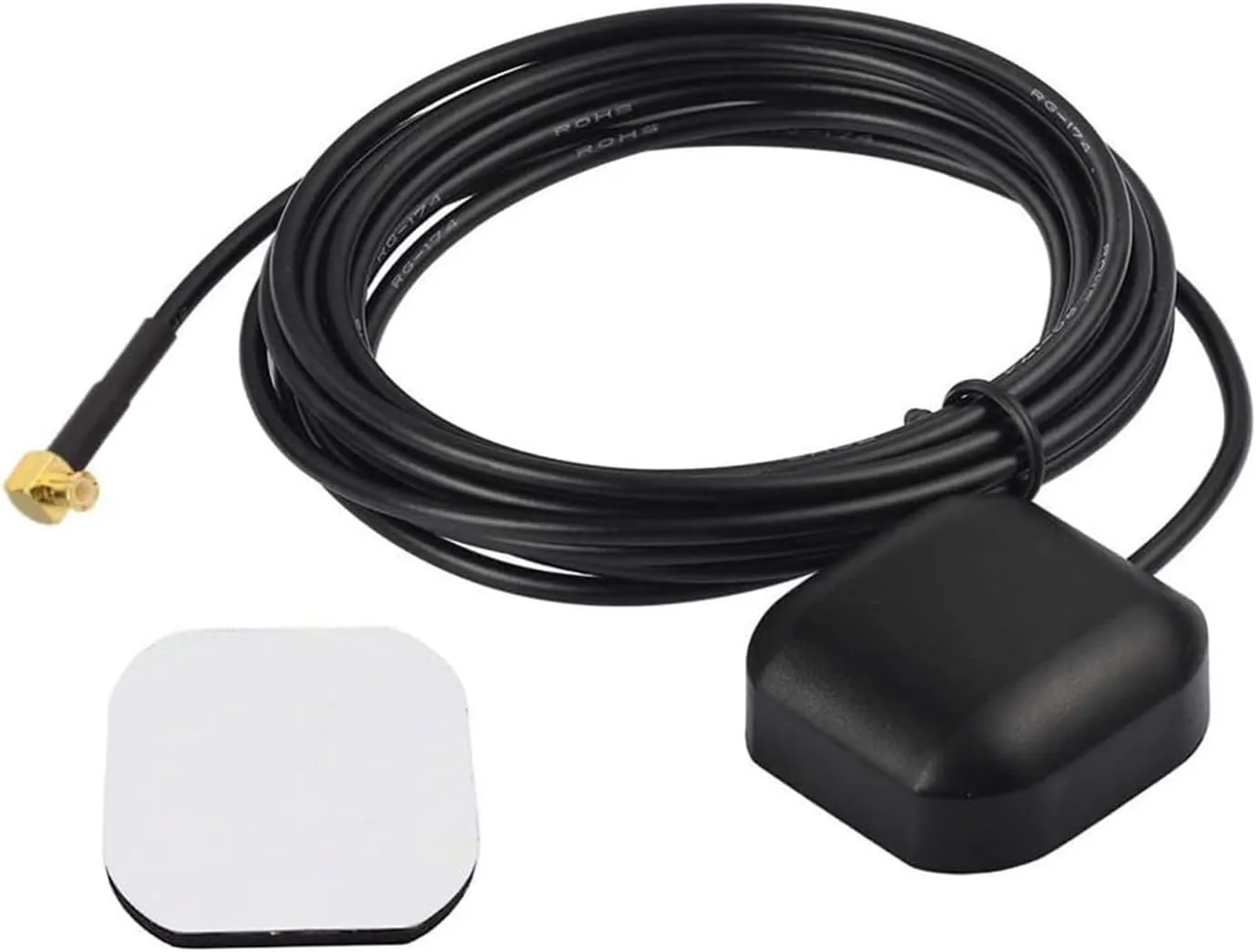

- Package List: 1 x Antenna, 1 x Double-sided Adhesive Piece (As the Picture Shown)
Specifications:
1. Dielectric Antenna
Center Frequency: 1575.42MHz 3MHz
V.S.W.R: 2:01
Bandwidth: 5 MHz
Impedance: 50
Peak Gain:> 3dBic based on 7x7cm ground plane
Gain Coverage:> -4dBic at -90 <0 <90 (over 75 volume)
Polarization: RHCP
2. LNA/Filter
LNA Gain Without cable: 28dB Typical
Noise Figure: 2.0dB
Filter Out Band Attenuation: (f0=1575.42MHz)
7dB Min f0 /-20MHz;
20dB Min f0 /-50MHz;
30dB Min f0 /-100MHz
V.S.W.R: <2.0
DC Voltage: 3V to 5V
DC current: 7-10MA
3. Overall
Frequency Range: 1575/1609MHz
V.S.W.R: 2.0
Gain: 303dBic
Impedance: 50 Ohm
3. Mechanical
Weight: 60 gram
Size: 35x30x15mm
Cable: RG174
Length: 3m
Connector: MCX Male Plug Right Angle Connector
Mounting: Magnet base
Housing: Black
4. Environmental
Working Temp: -40 to 85
Waterproof test: 4 hours under the tap, let the water rush over the housing;
Vibration: Sine sweep 1g (0-p) 10 ~ 50 ~ 10Hz each axis
Humidity: 95% ~ 100% R
Package List: 1 x Antenna (As the Picture Shown)
